Certificado de Homologação ANATEL Nº 01985-16-07745


P/N:C3VOIP-201P

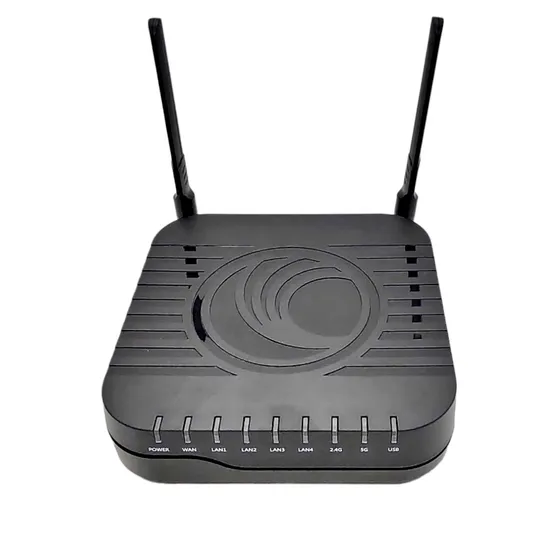

cnPilot R201P
C000000L045A

2.4
GHz 5
GHz 802.11ac

Cloud manged 802.11ac Dual Band roteador com ATA voz e PoE

WLAN ROUTERS TO SUIT FUNCTIONS AND BUDGETS

WLAN Routers: 802.11ac Dual band 2.4 and 5 GHz

ATA - for Voice

Cambium PoE out

TELEPHONE INTERFACES
2 FXS ports, RJ11

WAN: 1 x GigE, RJ45

LAN: 4 x GigE, RJ45

USB: 1 USB 2.0 Host Port for shared printer or storage

WIFI: 2x2 Dual band 11ac 2.4 (11n) and 5 GHz (11ac)

SSIDs
4 Per Radio: 8

RESET BUTTON
Factory reset button

LED INDICATORS:
Power

WLAN
LAN 1-4
Phone 1-2

Network
PROTOCOL
DHCP/ PPPoE/ Static IP
PPTP/L2TP VPN
Dynamic DNS/DNS SRV
(RFC 1706 and RFC 2782)
DMZ
NAT Traversal (Static NAT
Route or by STUN)
DHCP Client and DHCP
server
MAC address Clone
IP Conflict Detection
ROUTE MODE
Route/Bridge, customer
configurable
Support IEEE 802.1Q
VLAN/802.1p
Layer 3 (DSCP) settings for
SIP, RTP and Data

QUALITY OF SERVICE
Support IEEE 802.1Q
VLAN/802.1p
Layer 3 (DSCP) settings for
SIP, RTP and Data

Wireless INTERFACES
SECURITY
WEP, WPA-PSK (TKIP),
WPA-PSK (AES), WPA2-
PSK (TKIP), WPA2-PSK
(AES), Mixed mode

OTHERS
AP isolation, MBSSID AP
isolation, WMM, MAC Filter,
WDS, WPS

Call Features
IP SIGNALING
SIP V2 (RFC3261/3262/
3263/3264)

VOICE CODEC
G.711 (A-law, µ- law), G.722,
G.723, G.729

FAX OVER IP
Real Time FAX over IP via
T.38

T.30 Fax with G.711

VOICE FEATURES
Adaptive jitter buffer
management

Voice Activity Detection

Comfort Noise
Generation

CALL FEATURES
3-way Conference

Call hold, Call
forwarding, Call transfer,
Call waiting

Speed dial, Hotline, Dial
plan

Caller ID, Black list, Call log

NETWORK MANAGEMENT
Integrated Management
cnMaestro Cloud
Based Management for
Configuration, Provisioning and daily Monitoring

CONFIGURATION
Web GUI interface

Interactive Voice Response
(IVR)

AUTO PROVISIONING
TFTP, HTTP

SNMP
SNMP v2

TIME
SNTP

ADMIN
Administrator and User

NETWORK MANAGEMENT
(continued)

ALT MGMT
TR069

SYSLOG
Local, Remote

POWER SUPPLY
AC INPUT: 100 ~240V, 50-60 Hz
DC OUTPUT: 12V, 2A

DIMENSION (H x W x D) : 175 mm x 155 mm x 35 mm

PESO: 0.8 kg
