Certificado de Homologação Anatel 02900-15-08356

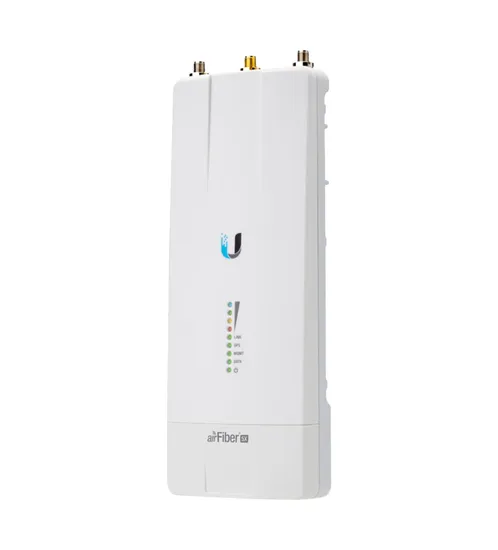

UBIQUITI UI AIRFIBER AF-5X 500MBPS 5.1 A 5.8GHZ BACKHAUL 200KM+ DE ALCANCE

ANTENAS COMPATIVEIS:

AF-5G23-S45 5 GHz 23 dBi
AF-5G30-S45 5 GHz 30 dBi
AF-5G34-S45 5 GHz 34 dBi

PARA USAR A RD-5G30 E RD-5G34 DEVE-SE TROCAR
O ALIMENTADOR POR O "AF-5G-OMT-S45"

(5062)UBIQUITI ANT. KIT DE CONVERSÃO AF-5G-OMT-S45 (ANT5G30/5G34)

USAR PIGTAIL: (716) UBIQUITI PIGTAIL PARA ROCKET- 5G30 - 5G34 SMA/SMA 15CM


Specifications
airFiber AF-5X
Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
Weight 0.35 kg (0.77 lb)
RF Connectors (2) RP-SMA Weatherproof (CH0, CH1)
(1) SMA Weatherproof (GPS)
GPS Antenna External, Magnetic Base
Power Supply 24V, 1A PoE Gigabit Adapter (Included)
Power Method Passive Power over Ethernet
Mounting airFiber X Mount (Rocket Mount Compatible)
GPS Pole Mount (Included)
Certifications
DFS Certified
FCC Part 15.407
CE EN 302502 v1.2.1, EN 301 893 v1.7.1
Operating Temperature -40 to 55° C (-40 to 131° F)
Networking Interface
Data Port (1) 10/100/1000 Ethernet Port
Management Port (1) 10/100 Ethernet Port
System
Processor INVICTUS IC
Maximum Throughput 500+ Mbps*
Maximum Range 200+ km*
Encryption 128-bit AES
OS airOS F
Wireless Modes Master/Slave
Radio
Operating Frequency 5150-5925 MHz
(Dependent on Regulatory Region)
Max. Conducted TX Power 26 dBm
(Dependent on Regulatory Region)
Frequency Accuracy ± 2.5 ppm without GPS Synchronization
± 0.2 ppm with GPS Synchronization
Channel Bandwidth 10/20/30/40/50 MHz Selectable
Programmable Uplink and Downlink Duty Cycles

PESO: 1.100 gramas
