Ui. POE-15-12W-BR Poe Injector 15VDC 12W Fonte (Nano/LBE-M5-
Disponível desde 24 de Outubro de 2022
Última listagem em 06 de Março de 2026
Compartilhar
código: #3101
Por:
US$ 4,00
R$ 21,44
* Os preços e a disponibilidade estão
sujeitos a alterações sem aviso prévio.
Informar preço incorreto ou indisponibilidade
Informações Extras
Model POE-15-12W-BR

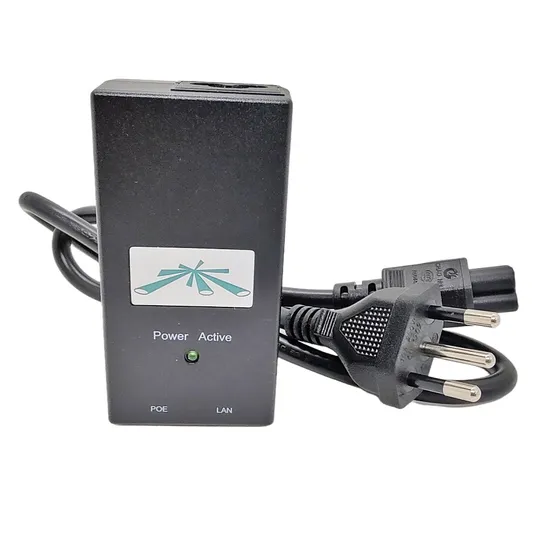

UI. POE-15-12W-BR POE INJECTOR 15VDC 12W FONTE (NANO/LBE-M5-PBE-M5)
Modelos compatíveis
LOCOM2 / LOCOM2-BR
NSM2 / NSM2-BR
NS5 / NS5-BR
NSLOCO5
LBE-M5-23 / LBE-M5-23-BR
PBE-M2-400 / PBE-M2-400-BR
PBE-M5-300 / PBE-M5-300-BR
PBE-M5-400-BR
PBE-M5-620
M3 PBM3
M5 PBM5
AIRCUBE 2.4GHz (ACB-ISP)
Dimensions 85.1 x 44 x 29.2 mm
(3.35 x 1.73 x 1.15 in)
Weight 91.7 g (3.24 oz)
Output Voltage 15VDC @ 0.8A
Input Voltage 90-260VAC @ 47-63 Hz
Input Current 0.3A @ 120VAC,
0.2A @ 240VAC
Inrush Current <30A Peak @120VAC,
<60A Peak @ 230VAC
Efficiency 75+%
Output Ripple 1% Max
Switching Frequency 50 kHz
Line Regulation ± 1%
Load Regulation ± 3%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 95% Non-Condensing
AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20µS) Power
Peak Pulse Current 36A (10/1000µS) Data
Shunt Capacitance <5 pf data
Response Time <1 nS
UI. POE-15-12W-BR POE INJECTOR 15VDC 12W FONTE (NANO/LBE-M5-PBE-M5)
Modelos compatíveis
LOCOM2 / LOCOM2-BR
NSM2 / NSM2-BR
NS5 / NS5-BR
NSLOCO5
LBE-M5-23 / LBE-M5-23-BR
PBE-M2-400 / PBE-M2-400-BR
PBE-M5-300 / PBE-M5-300-BR
PBE-M5-400-BR
PBE-M5-620
M3 PBM3
M5 PBM5
AIRCUBE 2.4GHz (ACB-ISP)
Dimensions 85.1 x 44 x 29.2 mm
(3.35 x 1.73 x 1.15 in)
Weight 91.7 g (3.24 oz)
Output Voltage 15VDC @ 0.8A
Input Voltage 90-260VAC @ 47-63 Hz
Input Current 0.3A @ 120VAC,
0.2A @ 240VAC
Inrush Current <30A Peak @120VAC,
<60A Peak @ 230VAC
Efficiency 75+%
Output Ripple 1% Max
Switching Frequency 50 kHz
Line Regulation ± 1%
Load Regulation ± 3%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 95% Non-Condensing
AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20µS) Power
Peak Pulse Current 36A (10/1000µS) Data
Shunt Capacitance <5 pf data
Response Time <1 nS
