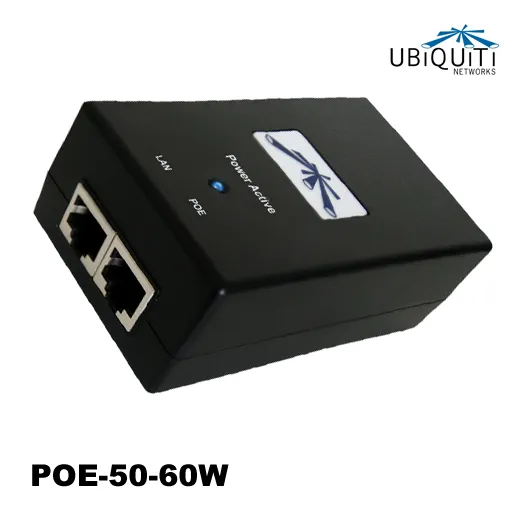

Ui. POE-50-60W-BR Poe Injector 50V 60W Fonte Airfiber
Disponível desde 24 de Outubro de 2022
Última listagem em 05 de Março de 2026
Compartilhar
código: #25910
Por:
US$ 27,00
R$ 144,72
* Os preços e a disponibilidade estão
sujeitos a alterações sem aviso prévio.
Informar preço incorreto ou indisponibilidade
Informações Extras
POE 50-60W com cabo BR
airFiber POE (50V, 1.2A) com cabo BR
A Ubiquiti POE-50-60W é um PoE Injector 50V, 60W projetado para uso com Ubiquiti airFiber, juntamente com Ubiquiti TOUGHCable e Conectores TOUGHCable, você pode efetivamente proteger contra ataques ESD.
CARACTERISTICAS
Dimensions 100.95 x 60 x 33 mm (3.97 x 2.36 x1.30 in)
Weight 192 g (6.77 oz)
Output Voltage 50VDC @ 1.2A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability No
Reset Button No
Input Voltage 90-260VAC @ 47-63 Hz
Input Current 1.3A @ 120VAC, 0.75A @ 240VAC
Inrush Current <100A Peak @120VAC, <200A Peak @ 230VAC
Efficiency 85+%
Output Ripple 1% Max.
Switching Frequency 65 kHz
Line Regulation ± 1%
Load Regulation ± 3%
4-Pair Powering Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 95% Non-Condensing
AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20µS) Power
Peak Pulse Current 36A (10/1000µS) Data
Shunt Capacitance <5 pf data
Response Time <1 nS
Compliance IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B
AC Cable with Earth Ground BRASIL
Product Model Number: POE-50-60W
airFiber POE (50V, 1.2A) com cabo BR
A Ubiquiti POE-50-60W é um PoE Injector 50V, 60W projetado para uso com Ubiquiti airFiber, juntamente com Ubiquiti TOUGHCable e Conectores TOUGHCable, você pode efetivamente proteger contra ataques ESD.
CARACTERISTICAS
Dimensions 100.95 x 60 x 33 mm (3.97 x 2.36 x1.30 in)
Weight 192 g (6.77 oz)
Output Voltage 50VDC @ 1.2A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability No
Reset Button No
Input Voltage 90-260VAC @ 47-63 Hz
Input Current 1.3A @ 120VAC, 0.75A @ 240VAC
Inrush Current <100A Peak @120VAC, <200A Peak @ 230VAC
Efficiency 85+%
Output Ripple 1% Max.
Switching Frequency 65 kHz
Line Regulation ± 1%
Load Regulation ± 3%
4-Pair Powering Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 95% Non-Condensing
AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20µS) Power
Peak Pulse Current 36A (10/1000µS) Data
Shunt Capacitance <5 pf data
Response Time <1 nS
Compliance IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B
AC Cable with Earth Ground BRASIL
Product Model Number: POE-50-60W
